Slitting
TS has downstream facilities to slit galvanized steel coils or ppgi coils into narrower widths according to customer requirements or as per the table below. Required individual slit coil weights and pallet weights can be supplied. TS has a special slitting line to meet the requirements of the any industry for their needs. TS can supply slit coils with inner diameters upon your requirement.
Parameter | Min | Max |
---|---|---|
Thickness (mm) | 508 | -- |
Coil Inner Diameter (mm)*** | -- | 1200 |
Coil Outer Diameter(mm) | -- | 1200 |
Slit Width (mm) | 45 | 1250 |
Slit Coil Mass (Metric Tons)** | -- | 10 |
Premium Packaging for Slitted Coils

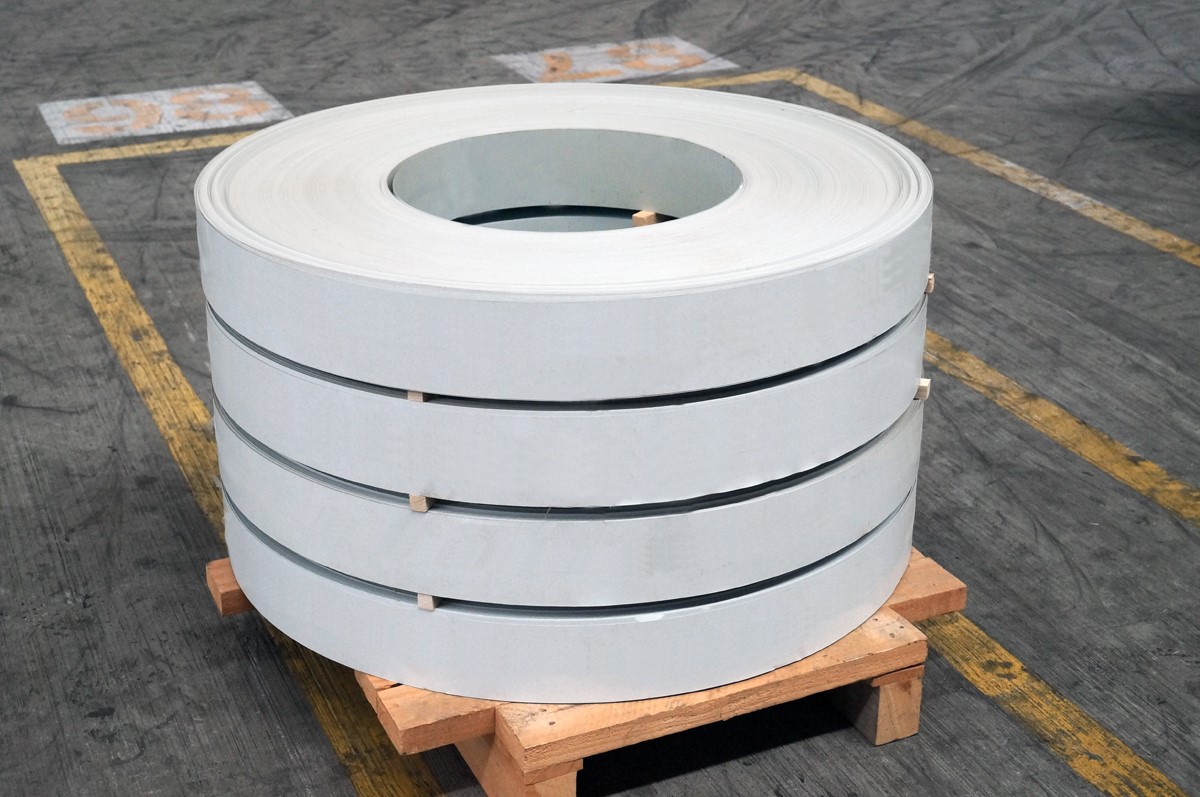

These coils are packed either vertically ( “eye to the sky,” on pallets) or horizontally (“eye to the wall”), depending on the slit width and considering safety aspects for handling. For packing in the vertical position, each slitted coil is separated by wooden spacers for ease of handling, and each separated set of slitted coils is enveloped by VCI paper and placed on a strong wooden pallet if ordered by the customer. A steel outer ring is put around the set of slitted coils, and the entire set of slitted coils is tightly strapped to strong wooden pallets to ensure protection from damage during handling and storage. The horizontal packing is similar to that of galvanized steel coils.
